Tables

adsb_messages: 58 columns; partitioned by hours(time)

Columns are based on readsb. Aircraft registration information comes from tar1090-db.

Column	Type	Comment
time	timestamp (not null)	UTC millisecond precision
icao	string (not null)	lowercase hex e.g a835af
callsign	string
registration	string	Aircraft tail number e.g N628TS
aircraft_type	string	Aircraft model/type e.g A319
lat	double (not null)	Latitude in decimal degrees
lon	double (not null)	Longitude in decimal degrees
radius_of_containment_m	int	Position uncertainty (meters), derived from NIC
on_ground	boolean	on-ground bit in ADS-B message
baro_altitude_ft	int	Barometric altitude (feet)
geom_altitude_ft	int	Geometric altitude (GNSS/WGS84, feet)
baro_rate_fpm	int	Vertical rate from barometric altitude (ft/min)
geom_rate_fpm	int	Vertical rate from geometric altitude (ft/min)
ground_speed_kt	float	Ground speed (knots)
indicated_airspeed_kt	float	Indicated airspeed (knots)
true_airspeed_kt	float	True airspeed (knots)
mach	float	Mach number
track_deg	float	degrees, true north)
track_rate_deg_s	float	Rate of change of track (deg/sec)
roll_deg	float	Aircraft roll angle (degrees)
magnetic_heading_deg	float	Heading relative to magnetic north
true_heading_deg	float	Heading relative to true north
nav_qnh_hpa	float	Altimeter setting (QNH/QFE) in hPa
nav_altitude_mcp_ft	int	Selected altitude from MCP/autopilot (feet)
nav_altitude_fms_ft	int	Selected altitude from Flight Management System (FMS) (feet)
nav_heading_deg	float	Selected heading (typically magnetic)
nav_modes	array<string>	Active autopilot/flight modes (e.g. autopilot, vnav, lnav)
squawk	string	Mode A squawk code (4 octal digits)
emergency	string	Emergency status (e.g. none, general, hijack, etc.)
alert	boolean	ADS-B alert flag
spi	boolean	Special Position Identification flag
version	int	ADS-B version (0, 1, 2)
nic	int	Navigation Integrity Category (position integrity)
nic_baro	int	NIC for barometric altitude
nac_p	int	Navigation Accuracy Category (position)
nac_v	int	Navigation Accuracy Category (velocity)
sil	int	Source Integrity Level
sil_type	string	SIL interpretation (perhour / persample)
gva	int	Geometric Vertical Accuracy
sda	int	System Design Assurance
type	string	Message/data source type (adsb_icao, mlat, tisb, etc.)
flags	int	Bitmask flags (e.g. stale position, new flight leg, etc.)
rssi_dbfs	float	Signal strength (dBFS, negative values)
source	string	Data source/origin (e.g. ADSB, MLAT, TIS-B)
no_reg_data	boolean	True if no registration data is available
pia	boolean	Privacy ICAO Address flag
ladd	boolean	FAA LADD (blocked aircraft) flag
military	boolean	Military aircraft flag
interesting	boolean	Flag for notable/interesting aircraft
owner	string	Aircraft owner (external enrichment)
aircraft_description	string	Human-readable aircraft description
category	string	ADS-B emitter category (A0–D7)
wind_direction_deg	float	Estimated wind direction (degrees)
wind_speed_kt	float	Estimated wind speed (knots)
outside_air_temp_c	float	Outside air temperature (°C)
total_air_temp_c	float	Total air temperature (°C)
mlat	array<string>	Fields derived from MLAT calculations
tisb	array<string>	Fields derived from TIS-B data

flights: 15 columns; partitioned by day(takeoff_time)

"takeoff_airport_ident" and "landing_airport_ident" use airport identifiers from the "ident" column in "airports.csv", sourced from OurAirports.com. Flights are derived from ADS-B data and may contain errors in areas with poor ADS-B coverage.

Column	Type
icao	string
callsign	string
registration	string
takeoff_time	timestamp
takeoff_airport_ident	string
landing_time	timestamp
landing_airport_ident	string
pia	boolean
ladd	boolean
military	boolean
interesting	boolean
aircraft_type	string
owner	string
aircraft_description	string
category	string

Get Database Access and MCP Access

Premium subscribers can access the data directly from their preferred environment, such as Python, and through the PlaneQuery MCP server in their preferred interface, including Codex and Claude. Questions? Send email to contact@planequery.com

Open Customer Portal

Python Quickstart

import boto3
import awswrangler as wr

session = boto3.Session(
    aws_access_key_id="key_id",
    aws_secret_access_key="secret_key",
    region_name="us-east-2",
)

sql = """
    SELECT *
    FROM adsb_messages
    WHERE time >= TIMESTAMP '2025-04-01 07:00:00'
      AND time <  TIMESTAMP '2025-04-01 08:00:00'
"""

df = wr.athena.read_sql_query(
    sql=sql,
    database='planequery_lake_prod',
    workgroup='workgroup',
    boto3_session=session,
    ctas_approach=False,
)

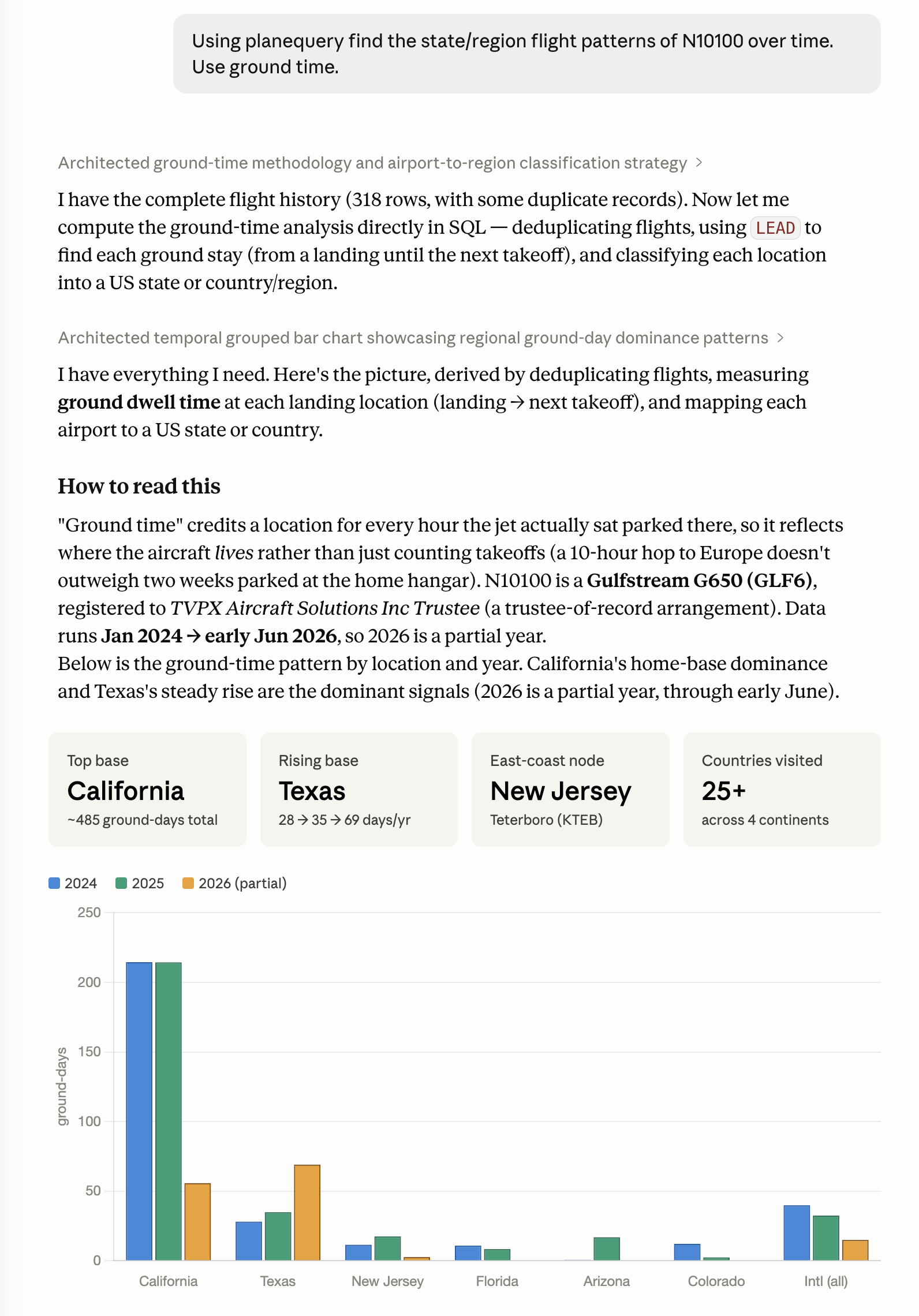

MCP Quickstart

# Codex
codex mcp add planequery -- npx -y mcp-remote "https://planequery.com/api/mcp" 3334

# Claude Desktop
claude_desktop_config.json:

{
  "mcpServers": {
    "planequery": {
      "command": "npx",
      "args": ["-y", "mcp-remote", "https://planequery.com/api/mcp", "3334"]
    }
  }
}

Comparison to other sites

Provider	SQL interface	High Quality Flight Data	Uncensored	Click to Buy
FlightAware	No	Yes	No	Yes
Flightradar24	No	Yes	No	Yes
ADSB Exchange	No	No	Yes	No. Pricing unknown.
OpenSky	Yes	No	Yes	No. Access granted to academia. Commercial access and pricing unknown or unavailable.
PlaneQuery.com	Yes	Yes	Yes	Yes
